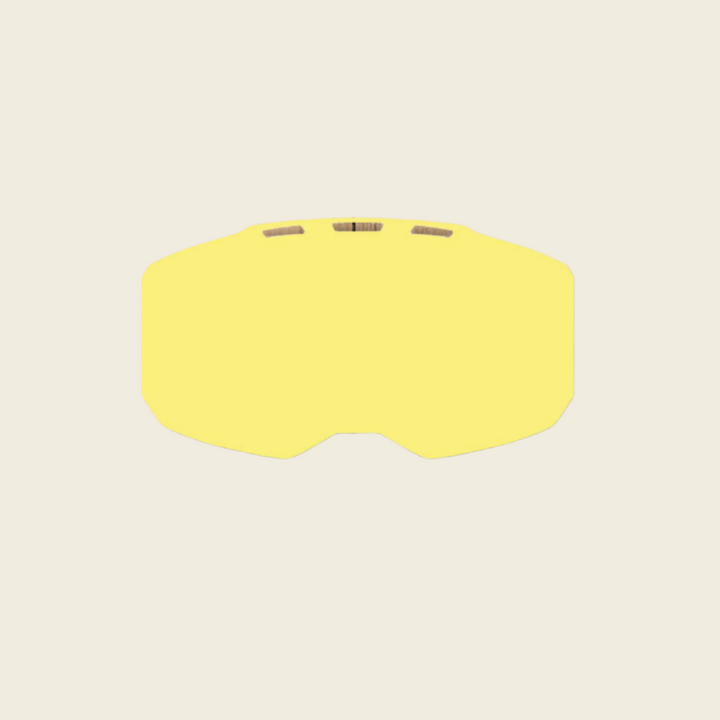

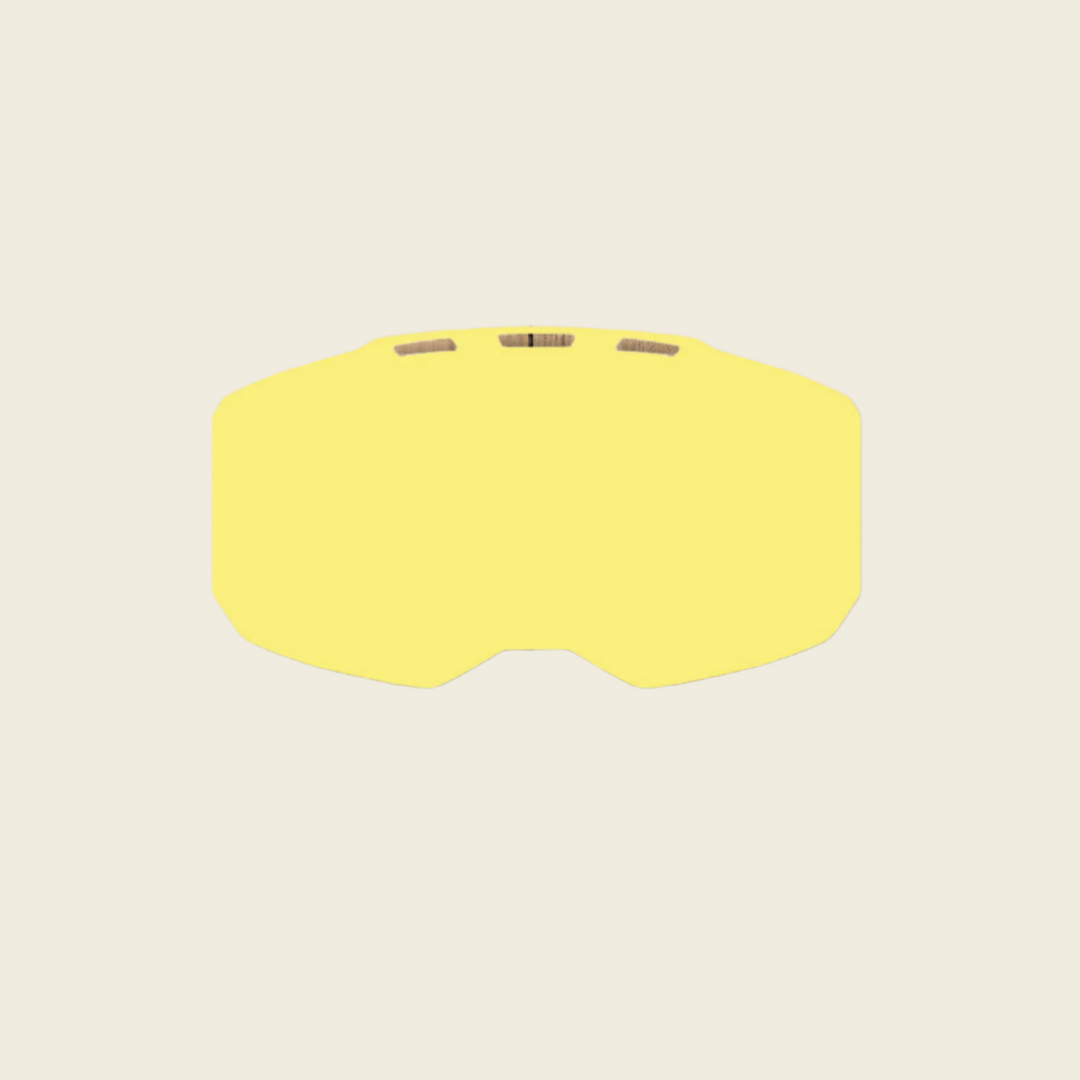

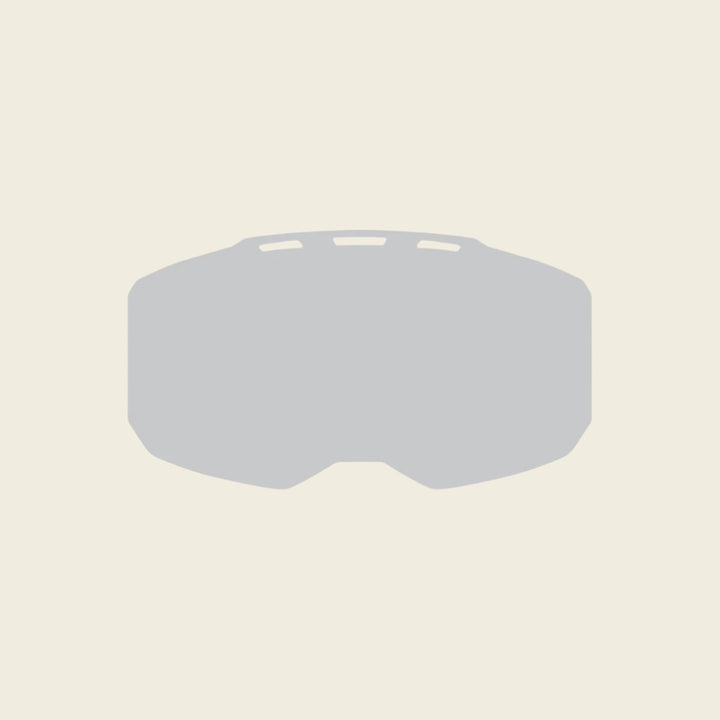

Klim Edge Lens
FULL SPECS
- FAST, CONVENIENT LENS REPLACEMENT TECHNOLOGY FOR CHANGING LIGHT CONDITIONS
- ANTI-SCRATCH QUICK-RELEASE IMPACT RATED CYLINDRICAL LENS
- OPTICALLY CORRECT INJECTION MOLDED HD LENS TECHNOLOGY
- DUAL-PANE LENS W/ 3M™ GASKET FOR FOG PREVENTION (POLYCARBONATE OUTER, CELLULOSE INNER)
- THRU-LENS FOAM-FILTERED VENT TO MANAGE TEMP/ELEVATION CHANGES AND PREVENT FOGGING
- SUPER ANTI-FOG LENS COATING
- INJECTION MOLDED LENS FRAME FOR DURABILITY AND STRENGTH
- PASSES ANSI Z87.1 IMPACT PROTECTION SAFETY STANDARD
- MAGNETIC QUICK RELEASE + SLIDE LOCK LENS RETENTION SYSTEM
- PHOTOCHROMIC AND POLARIZED OPTIONS AVAILABLEa
- INCLUDES THERMO-FORMED PROTECTIVE CASE W/ FELT INTERIOR
UV 400 RATING
REPLACING THE EDGE GOGGLE LENS
Removing the lens:
On the right-hand side with the goggle facing toward you, move the locking slider upward until it clicks into the open position. Pull the lens away from the frame, continue pivoting the lens toward the left-hand side away from the goggle. The pivot on the left-hand side will release the lens.
Installing the lens:
On the left-hand side with the goggle facing toward you, align the lens hinge into the pivot in the goggle frame. Be sure the locking slider is in the up (open) position. Pivot the lens down toward the frame, magnets will guide it into place. Move the locking slider down to secure the lens, making sure the slider clicks into place.
